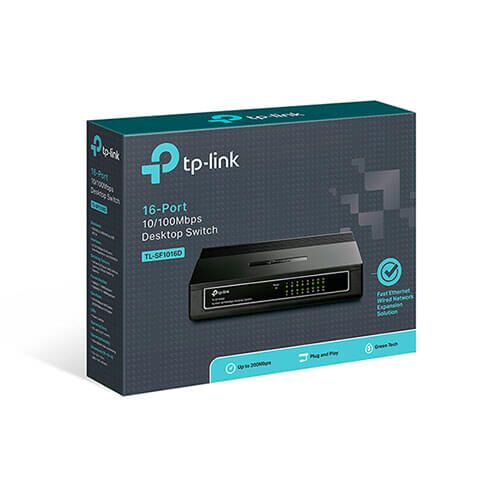

TP-LINK TL-SF1016D 16-Port 10/100Mbps Desktop Switch

Features

– Innovative energy-efficient technology saves power up to 80%
– Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode
– Non-blocking switching architecture that forwards and filters packets at full wire-speed for maximum throughput
– 3.2Gbps Switching Capacity
– Auto-MDI/MDIX eliminates the need for crossover cables
– Supports MAC address auto-learning and auto-aging
– Auto-negotiation ports provide smart integration between 10Mbps, 100Mbps hardware.
– Fanless design ensures quiet operation
– Desktop or wall-mounting design
– Plug and Play design simplifies installation

Specification:

HARDWARE FEATURES

Interface:
1610/100Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX

Fan Quantity: Fanless

Power Consumption: Maximum: 3.1W (220V/50Hz)

External Power Supply: 100~240VAC, 50/60Hz

Mac Address Table: 1K

Dimensions ( W x D x H ): 7.9*5.6*1.6 in. (200*142*40 mm)

SOFTWARE FEATURES

Transfer Method: Store and Forward

Advanced Functions:
Green Technology, saving power up to 80%
802.3X Flow Control, Back Pressure

OTHERS

Certification: FCC, CE, RoHs

Package Contents:
16-Port 10/10Mbps Desktop Switch TL-SF1016D
Power Adapter
User Guide

System Requirements: Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7, MAC® OS, NetWare®, UNIX® or Linux.

Environment:
Operating Temperature: 0℃~40℃ (32℉~104℉);
Storage Temperature: -40℃~70℃ (-40℉~158℉);
Operating Humidity: 10%~90% non-condensing;
Storage Humidity: 5%~90% non-condensing
